Monkey Lift With 02 nos Wheel Barrow

Get a Price/Quote

MOQ : 1 Piece

Monkey Lift With 02 nos Wheel Barrow Specification

Hook
Heavy-duty forged steel hook with safety latch

Surface Finish
Powder Coated (Rust & corrosion resistant)

Frequency
50 Hz Hertz (HZ)

Lifting Speed
20 25 m/min (typical) m/m

Usage
Construction site, material lifting & handling

Power Source
Electric

Size
Standard compact design with detachable boom & stand

Sling Type
Wire Rope

Height
6 8 (machine stand height, ground level) Foot (ft)

Maximum Lifting Weight
250 500 kg Kilograms (kg)

Product Type
Monkey Lift with Wheel Barrow (Material Hoist)

Maximum Lifting Height
60 100 ft Foot (ft)

Lift Speed
20 25 m/min m/m

Weight
350 450 kg Kilograms (kg)

Color
Yellow / Custom (powder-coated finish)

Power
3 HP 5 HP Horsepower (HP)

Width
4.5 ft (base frame) Foot (ft)

Length
5.5 (boom length) Foot (ft)

Voltage
220 V (Single Phase) Volt (v)

Rotating Speed
1440 rpm (motor speed, standard) RPM

Insulation Grade
F (for motor winding)

Trolley
2 Nos. Wheel Barrow (detachable, rugged steel body with handles)

Capacity
250 500 kg (depending on model) Kg

Monkey Lift With 02 nos Wheel Barrow Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
2 Days

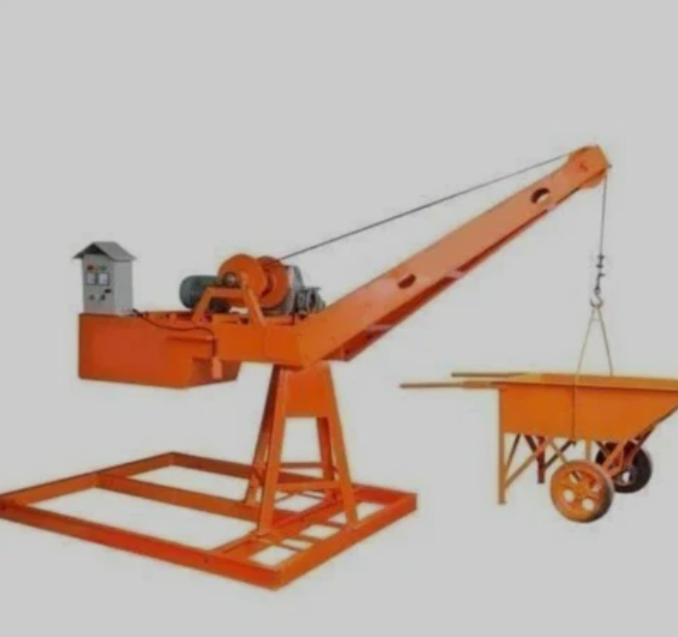

About Monkey Lift With 02 nos Wheel Barrow

The Monkey Lift with Wheel Barrow attachment is a compact and efficient material handling solution widely used in construction sites, warehouses, and civil works. It is specially designed for lifting and transporting construction materials such as sand, cement, bricks, concrete, and aggregates vertically with ease and safety.

This system combines the Monkey Lift (Material Hoist) with two wheelbarrows, making it convenient for site workers to directly load/unload materials without additional handling. The wheelbarrows ensure smooth mobility on the ground, while the monkey lift enables efficient vertical lifting to higher floors.

Key Features

Sturdy Structure Built with heavy-duty steel for durability and long service life.
Dual Wheel Barrow System Allows easy loading/unloading of materials at the ground level.
Vertical Material Lifting Capable of lifting construction materials to multi-storey heights.
Compact & Portable Easy to shift across the site with wheelbarrow support.
Single/Three Phase Motor Options Operates on available power supply as per requirement.
Safety Features Includes strong wire rope, robust pulleys, and mechanical braking system for secure operation.

Power (Motor) : 3 H.P (Single Phase )Crompton

Gear Box : 30 rpm

Rotation : 360 Degree

Boom Length :5.5 Feet

Boom Pipe :100 Mm Pipe

Base Size :4.5 X 4.5 Feet

Machine Weight : 250 Kg

Prime Mover :Motor With Warm Gear Box

OPERATING SYSTEM:- REVERS AND FORWARD SWITCH

Wire Rope : 10 Mm Mahadev

Pulley Size : 6inch With 2 Nos. Bearing Set Wire Drum Size : 10 Inch Dia With 2 Nos. Ucp 208 Bearing
Net Lifting Capacity: Up To 150 Kg Lifting Height :100 Feet
